Flowed carb / page 1 / photo 4 (18) - p1020226.jpg

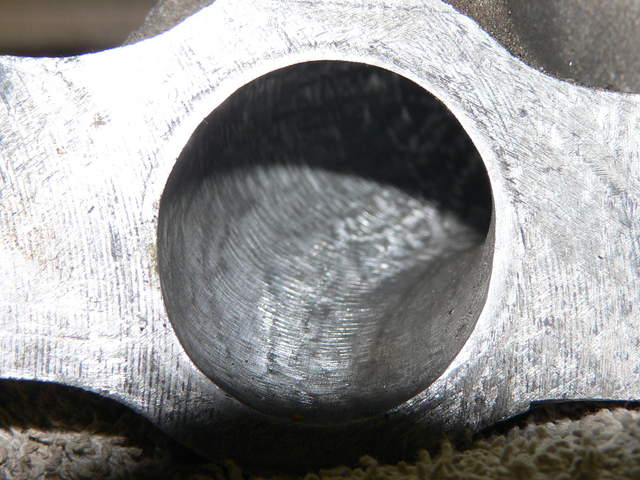

End of the intake. Make the outside corner point a bit to the middle again but widening the outside corner up to 5 mm before the intake ends, so that the incoming air and fuel is directed to the center of the two intake valves.
