Flowed carb / page 1 / photo 8 (18) - p1020230.jpg

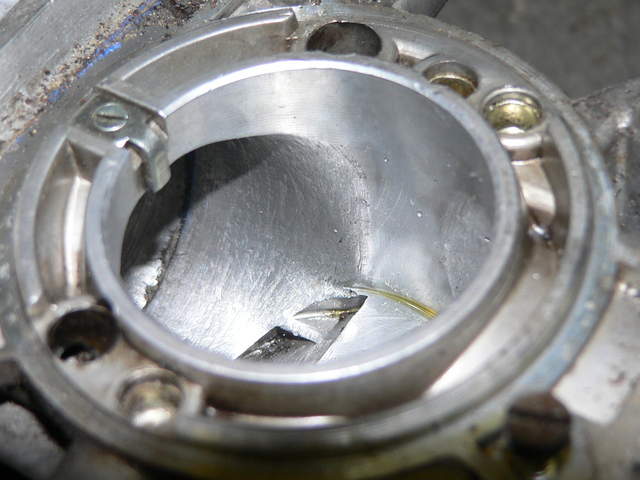

Transition to piston 'area' is flattened. Make sure you don't remove metal on the side of where the piston seals. The seal doesn't have to be perfect, but too much leaking causes fuel starvation.
