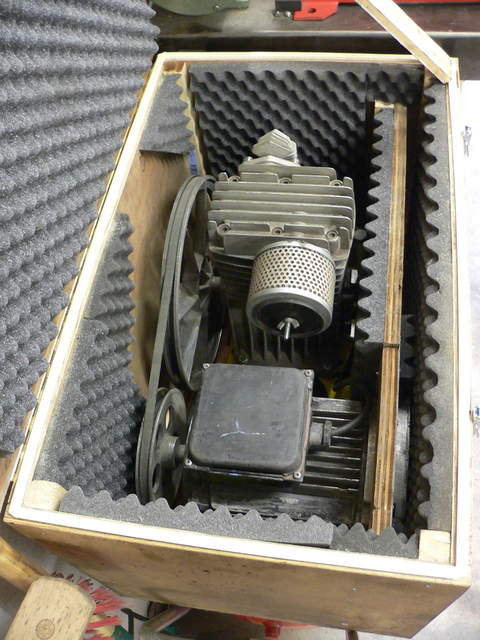

Compressor sound insulation / page 1 / photo 4 (8) - p1020381.jpg

On the right there's a 'gap' with sound reducing material in it. Through this gap the air is sucked in. During building attention was paid to the cooling of the compressor and the airflow around the motor, etc..
